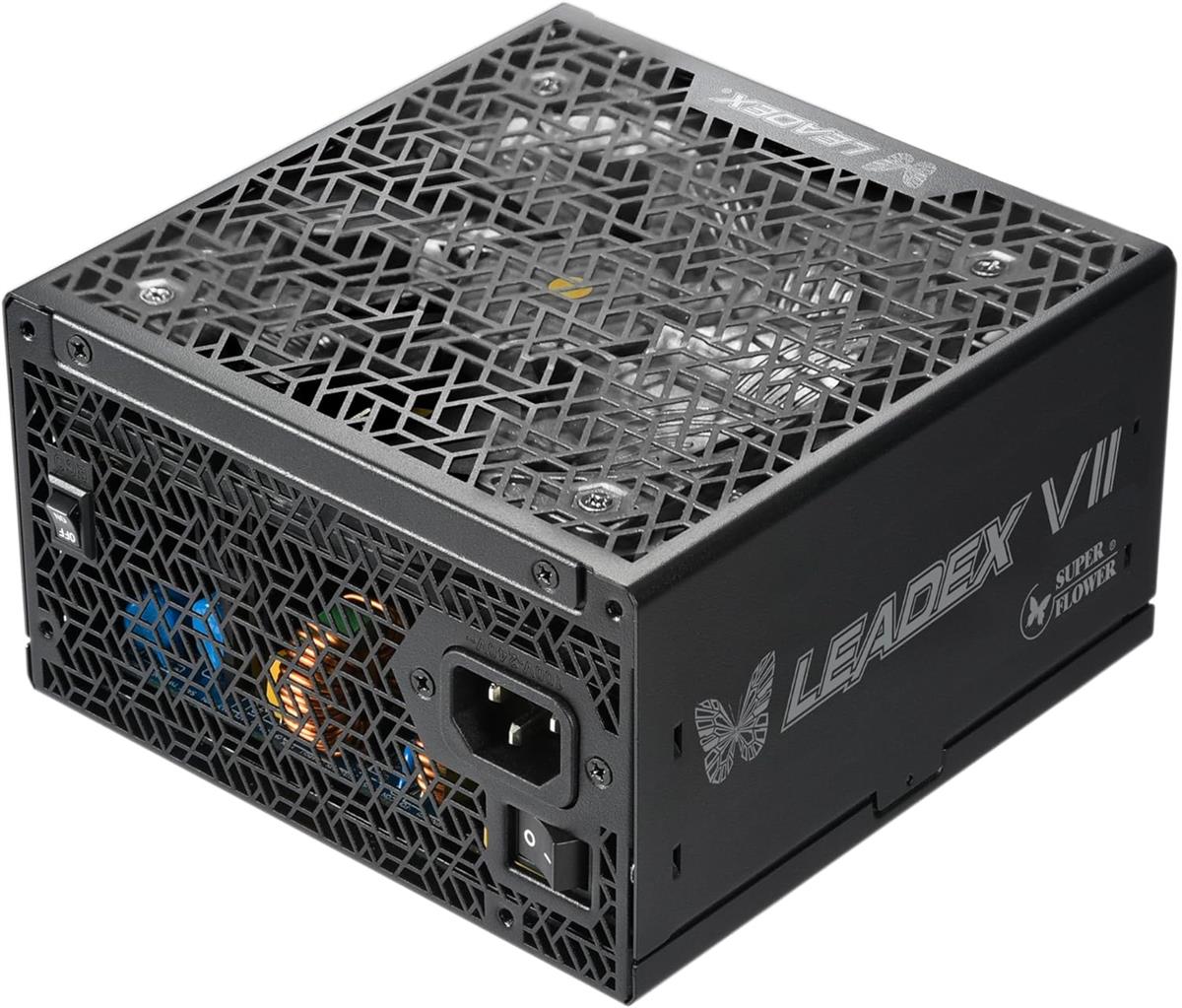

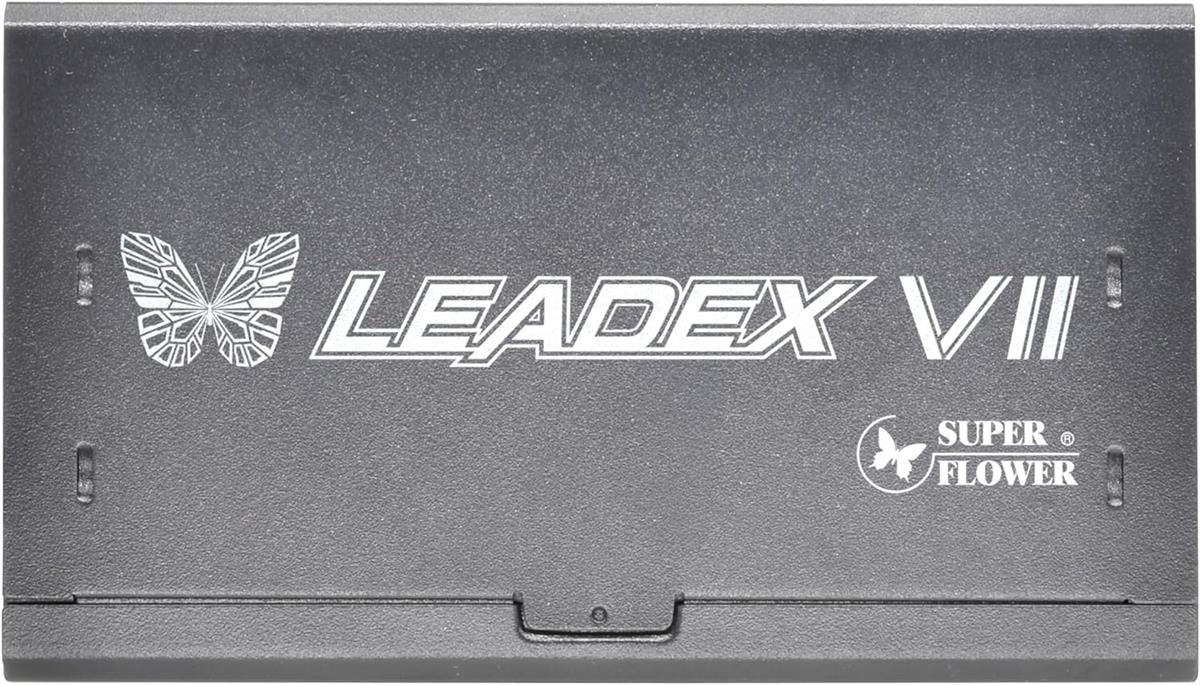

Super Flower LEADEX VII Platinum PRO 1200W PSU

LEADEX VII Platinum PRO 1200W ATX 3.0 (BK) / ATX 3.1 (BK)
Brand: super-flower
Availability: In Stock
Rs. 65,999

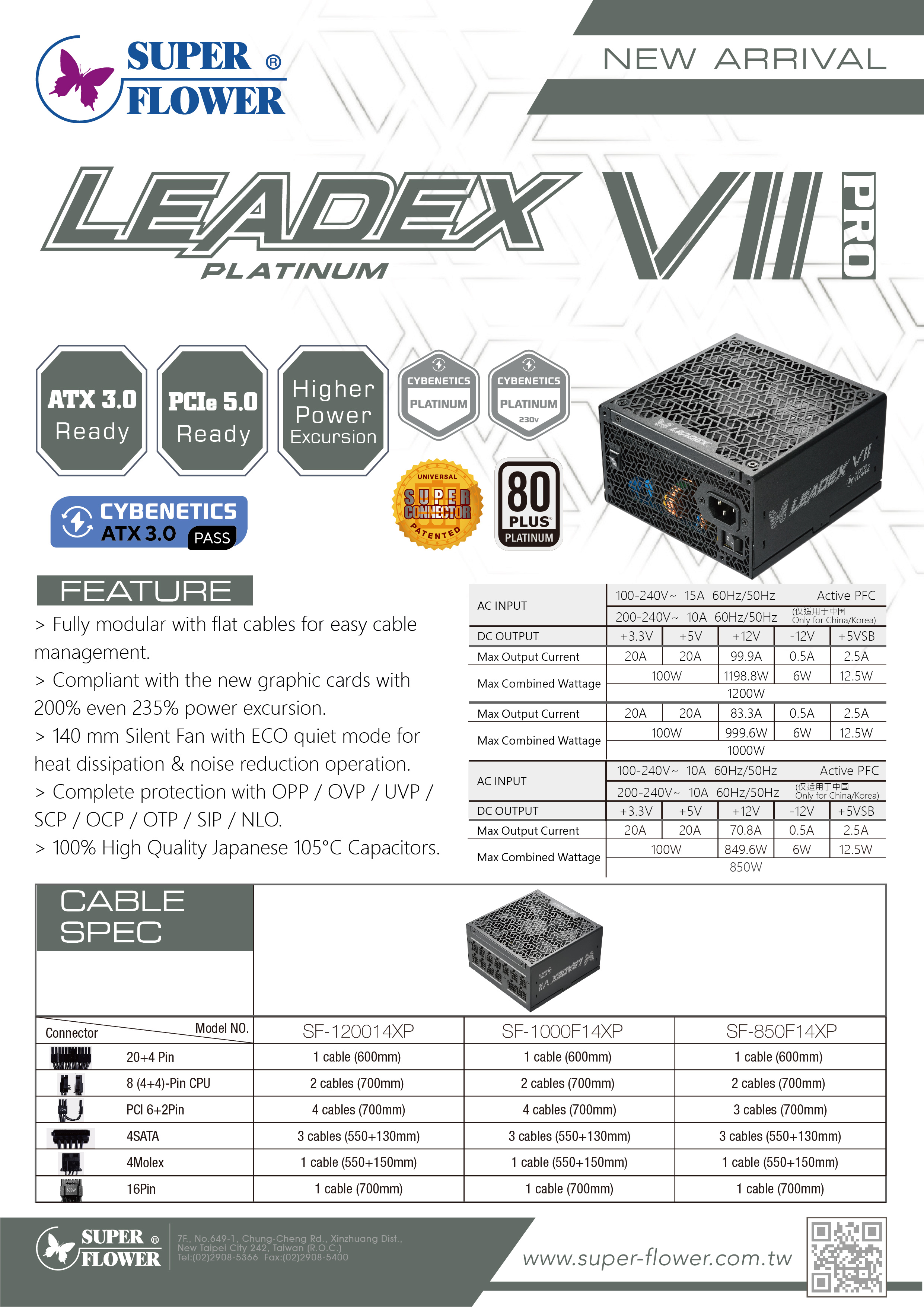

Specification

Model No.:

SF- 1200F14XP

Transform Efficiency

20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency

Cybernetics Certified

Efficiency: Platinum  /  Efficiency 230V: Platinum

Intel Power Design Guide

EPS Ver. 2.92 & ATX 3.0

AC Input | Frequency

100V-240V | 60 / 50Hz , Full Range APFC

Fan Size

14cm FDB FAN

Dimension

150mm(L) x 150mm(W) x 86mm(H)

Protection

OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP

Safety Certificates

cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC

Temperature

Passed 50 Hot Testing

Cable Wires

20+4 Pin

Detachable

One Cable (600mm)

8(4+4) Pin CPU

Two Cables (700mm)

PCI 6+2 Pin

Four Cables (700mm)

4 SATA

Three Cables (550+130+130+130mm)

4 Molex

One Cable (550+150+150+150mm)

PCIe 12+4 Pin

One Cable (700mm)



model no.: SF-1200F14XP

AC INPUT

100-240V~  15A  60Hz/50Hz

200-240V~  10A  60Hz/50Hz (Only for China/Korea)

DC OUTPUT

+3.3V

+5V

+12V

-12V

+5VSB

1200W

Max Output Current

20A

20A

99.9A

0.5A

2.5A

Max Combined Wattage

100W

1198.8W

6W

12.5W

1200W


LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.0 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode.

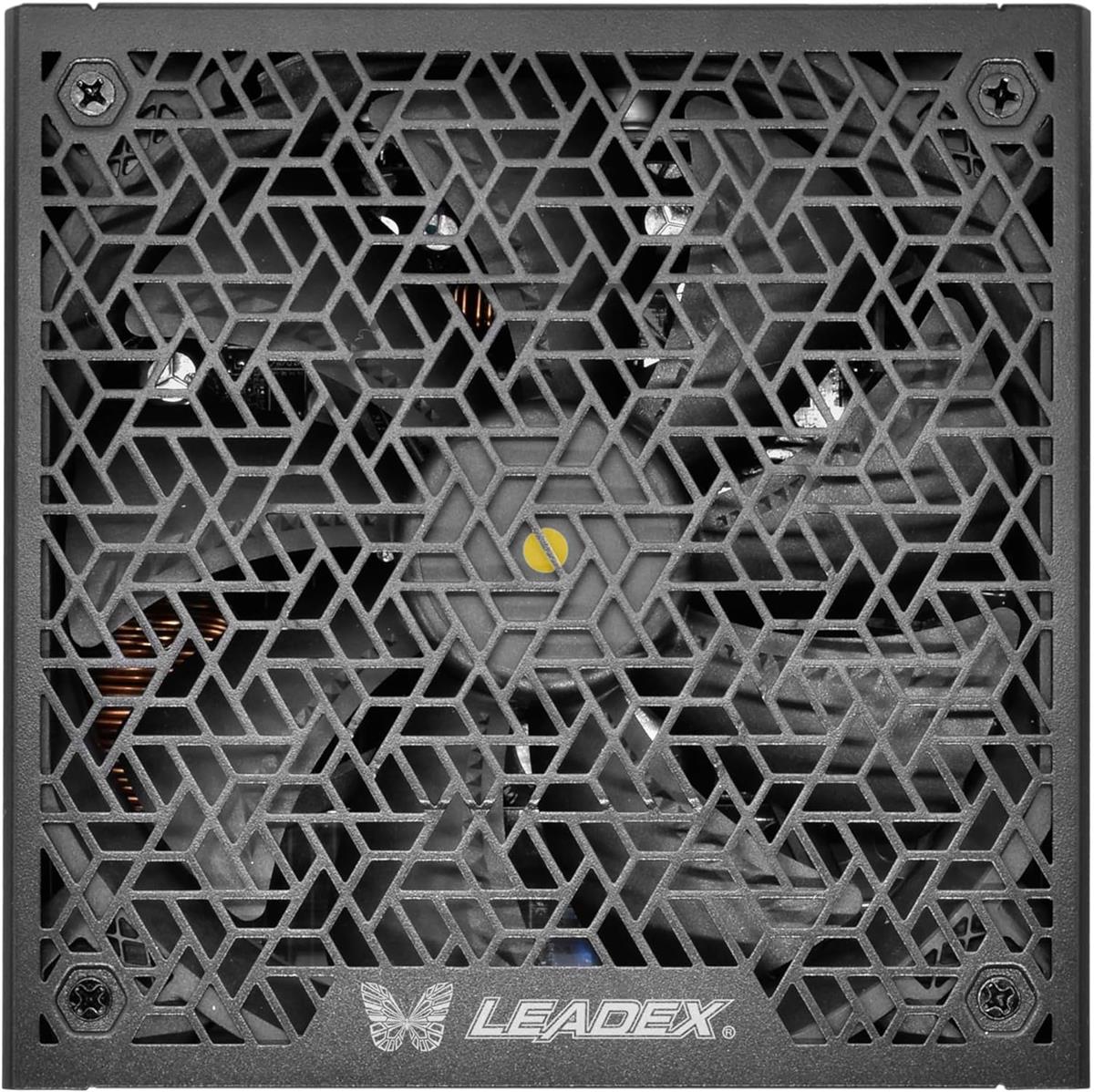

★ 140mm F.D.B Fan: Unique 9-blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA).

★Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span.

★ New patented Universal SUPER CONNECTOR(Patent No.: Taiwan D196948 D196949 ; China CN304998083S) Universal Super Connectors with a patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided.

★ New patented technology of Buckle (20+4) Pin connector(Patent No.: Taiwan M563575 ; China 7566010)

★ Innovative Design for gaming System & PSU protection
1. DC output +12V/ +5V/ +3.3V remain stable
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V
3. +12V Output With Exceptional Low Ripple Measurements
4. Low Output Voltage Ripple

★ ECO-design
1. Auto & ECO Fan Control
2. High efficiency on all rails, including 5VSB

★ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management.

★ 80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.

★ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel)

★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC)

★Comply With ATX 12V v3.0, EPS 12V v2.92 Specification.

★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation

★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection

★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready)

★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card

★ More than 2,000 times On/Off test

★ Lead-free Green Materials with RoHS / WEEE Compliance

★ Perfect For Professional & High Performance Gaming System

★ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.
